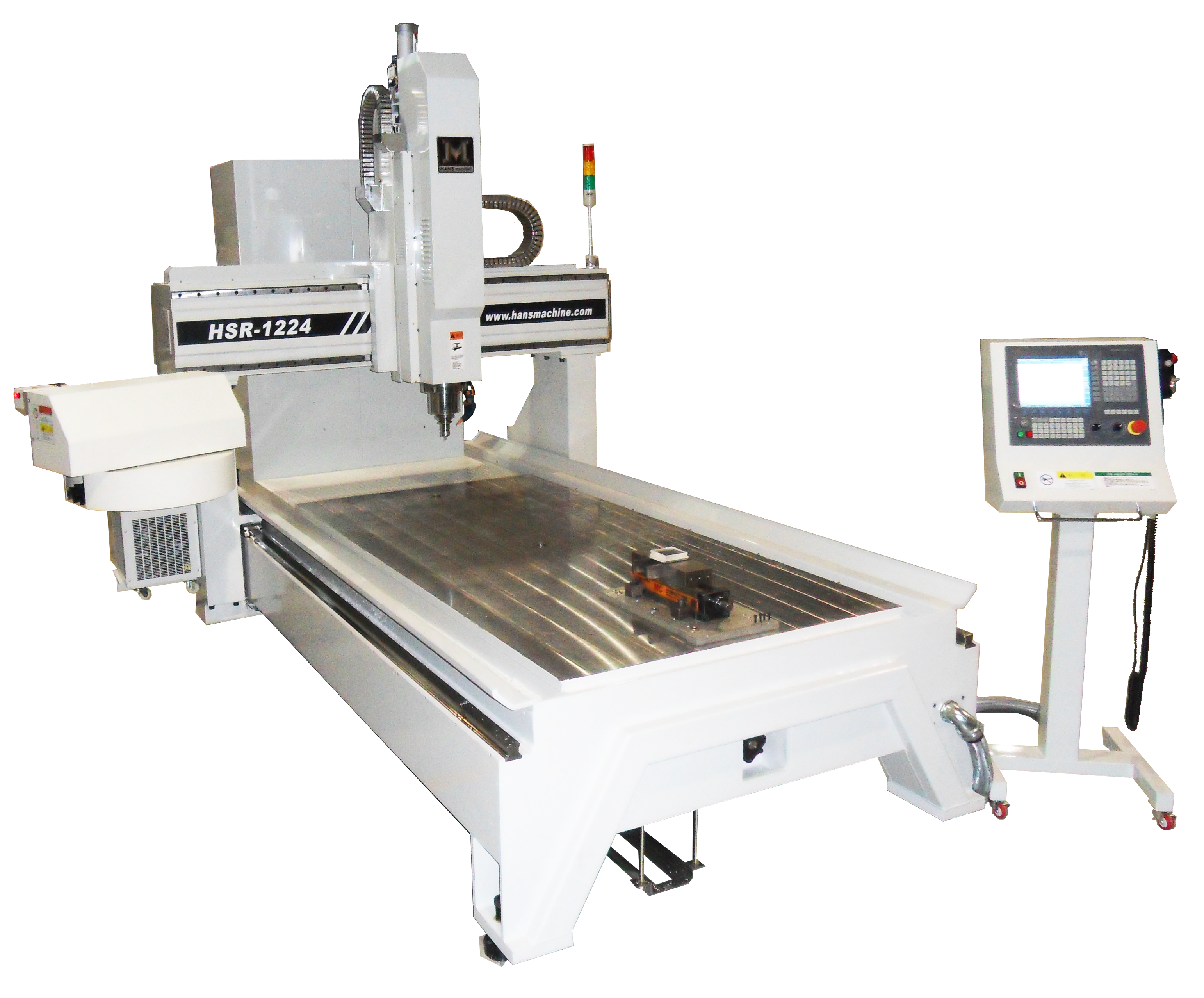

HSR-1224

HSR-1224

Specialized on Wood, Steel,Aluminium,Quartz, etc.
나무,스틸,알루미늄,쿼츠,등 에 적합한 장비.

  • MACHINE SPECIFICATION

    Standard Spec Technical data
    Control  SIEMENS 828D/FANUC 0i-MF PLUS
    Stroke(X-Y-Z) 1,200 x 2,400 x 300 mm
    Table Size(X-Y) 1,200 x 2,400 mm
    Rapid(X-Y-Z) 40,000 x 40,000 x 30,000 mm/min
    Max. Table Load 500kgf
    Spindle

    7.5-11Kw-9,000 rpm
    Auto Tool Change Device 16
    -  -
    Main Power AC 380V, 3Phase,60Hz
    Main Air Pressure 0.6Mpa 200L/min
    Installation Area W x L x Z 3,800 x 2,600 x 2,700 mm
    Facility Weight 7,500Kg



  • OPTION PART

    Optional Spec            Technical Data
    Laser probe Automatic MEasurement of non-contact tool length,external diameter,wear,breakage, etc
    Touch Probe Automatic measurement of the position,angle,flatness,etc.
    Splash Cover  Customize
    Vacuum Table  Customize
    Spindle Upgrade

    HSK63F, 12,000rpm/

    HSK63F, 24,000rpm/
    Extra Auto Tool Change  -
    Moveable Cutting-oil System Optional : 120L
    Vacuum Pump System depends on the workpiece
    Tool & Holder Apply on user request
